GEORIM ENGINEERING — Specialists in Marine Pollution Prevention Equipment
| Product | 5/10/15PPM OILY BILGE SEPARATOR | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Type 1 | Type 2 | |||||||
| 02EB | 03EB | 05EB | 10EB | 20EB | 25EB | 50EB | 100EB | ||
| CAPACITY [㎥/hr] |
0.2 | ✔ | |||||||
| 0.3 | ✔ | ||||||||
| 0.5 | ✔ | ||||||||
| 1.0 | ✔ | ||||||||
| 2.0 | ✔ | ||||||||
| 2.5 | ✔ | ||||||||
| 5.0 | ✔ | ||||||||
| 10.0 | ✔ | ||||||||
The GRS-EB TYPE oily bilge separator separates incoming oil and water using their difference in specific gravity under constant pressure.
The system is operated from the oily bilge separator control panel and can run in automatic or manual mode. Built-in oil level detectors and solenoid valves provide automatic valve control, enabling continuous operation.

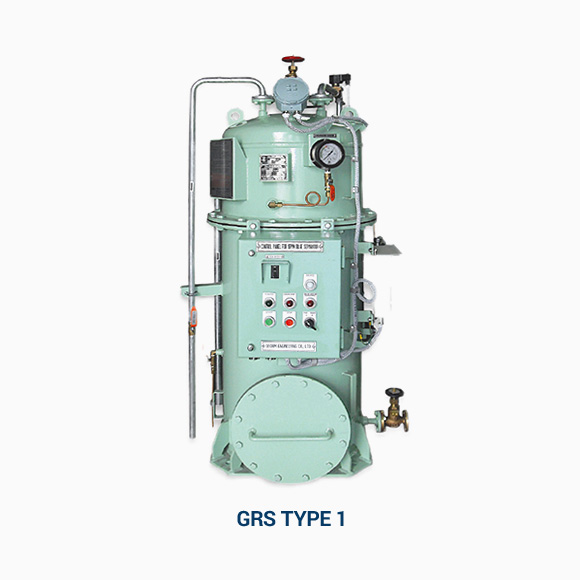

GRS TYPE 1 :
An integrated single-tank design for small vessels (GRS-02,03,05EB)
Compact, space-saving layout optimized for small vessels
Automatic oil discharge through integrated oil level detection and solenoid valve control
Backwashing function
Maximum treatment efficiency through successive stages with different filtration structures

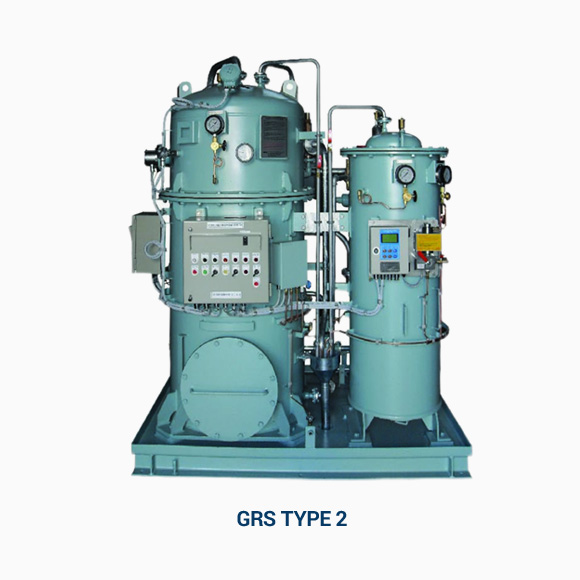

GRS TYPE 2 :
The system consists of a primary chamber and a secondary chamber. The primary chamber mainly treats oil particles with a higher specific gravity, while the secondary chamber treats smaller particles remaining after the primary chamber, allowing final discharge with an oil content below 5 or 15PPM.
For medium and large vessels (GRS-10,20,25,50,100EB)
Automatic oil discharge through integrated oil level detection and solenoid valve control
Automatic backwashing when oil is detected in the upper section
Pressure-regulating valves maintain constant internal pressure
Maximum treatment efficiency through successive stages with different filtration structures

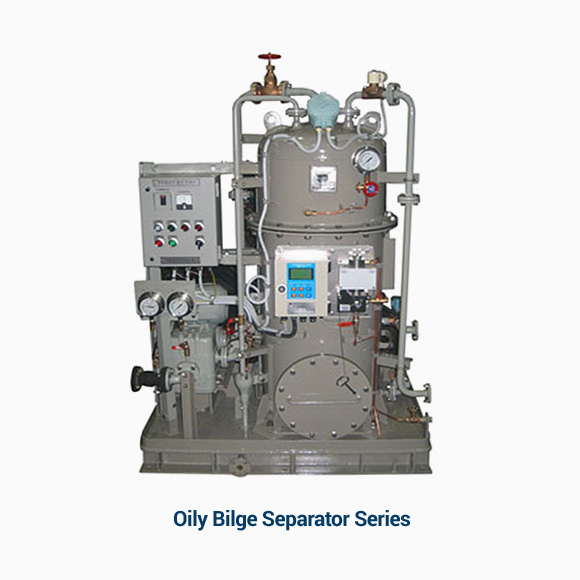

(Coast Guard and Navy)
| Product | 5/10/15PPM OILY BILGE SEPARATOR | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | 02EB | 03EB | 05EB | 10EB | 20EB | 25EB | 50EB | 100EB | |
| CAPACITY [㎥/hr] |
0.2 | ✔ | |||||||
| 0.3 | ✔ | ||||||||
| 0.5 | ✔ | ||||||||
| 1.0 | ✔ | ||||||||
| 2.0 | ✔ | ||||||||
| 2.5 | ✔ | ||||||||
| 5.0 | |||||||||
| 10.0 | |||||||||
A range of oily bilge separators specialized for naval, coast guard and special-purpose vessels
